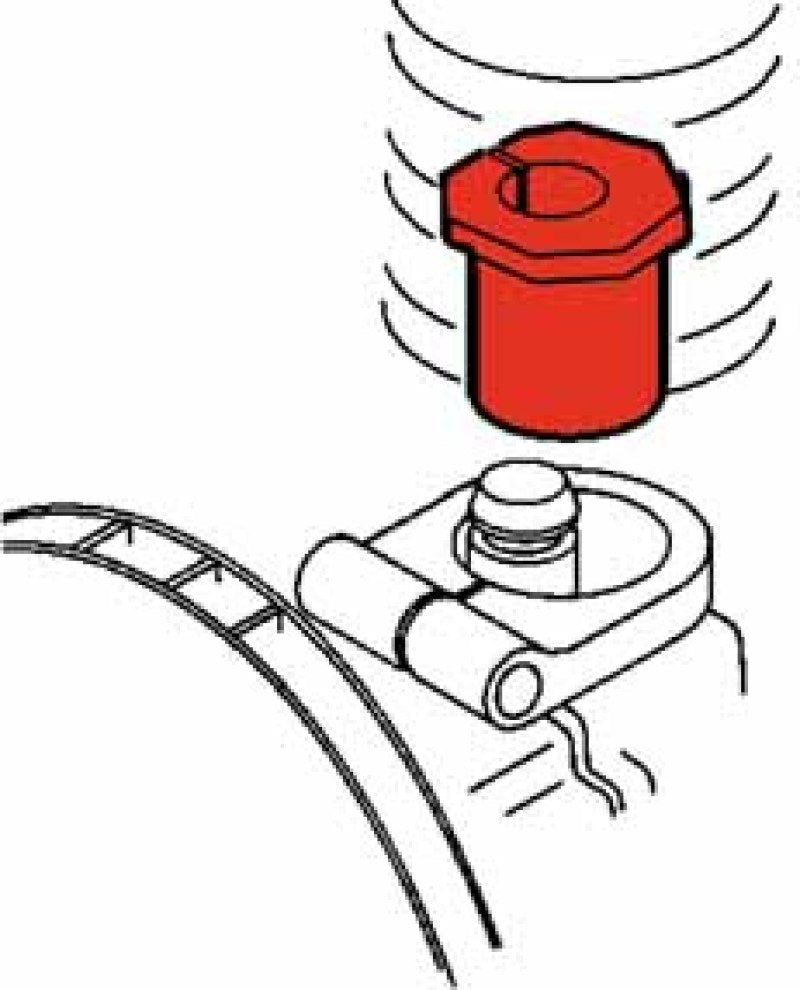

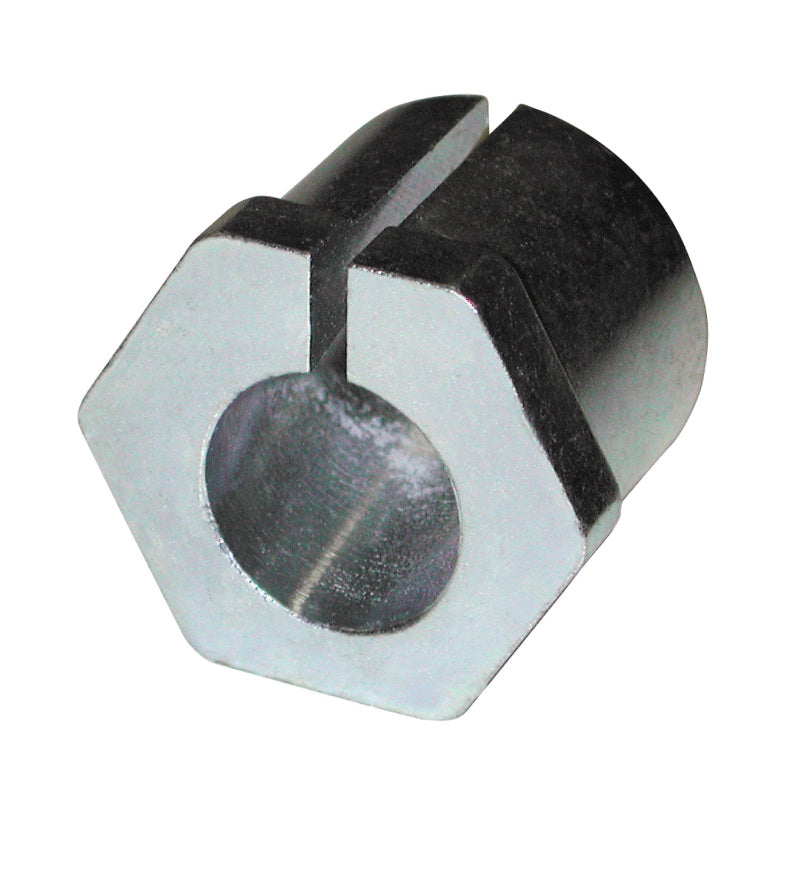

These popular sleeves are widely used to adjust caster and/ or camber on many Ford and Mazda RWD & 4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Use 77880 or 88830 sleeve puller to remove the existing sleeve. To split camber and caster adjustment, rotate sleeve 45deg. Save time during alignment, use 23199 zero degree sleeve to determine initial readings, then install correct sleeve. Note: Sleeves adjust to a smaller degree on Ford andMazda 4WD light trucks/SUVS. California Residents WARNING
This Part Fits:
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1989-1990 | Ford | Bronco II | Eddie Bauer |
| 1989-1990 | Ford | Bronco II | XL |
| 1989-1990 | Ford | Bronco II | XL Sport |
| 1989-1990 | Ford | Bronco II | XLT |
| 1989-1990 | Ford | Bronco II | XLT Plus |
| 2003-2014 | Ford | E-150 | Base |
| 2006-2007 | Ford | E-150 | Chateau |
| 2006-2014 | Ford | E-150 | XL |
| 2006-2014 | Ford | E-150 | XLT |
| 2003-2005 | Ford | E-150 Club Wagon | Chateau |
| 2003-2005 | Ford | E-150 Club Wagon | XL |
| 2003-2005 | Ford | E-150 Club Wagon | XLT |
| 1992-2002 | Ford | E-150 Econoline | Base |
| 1992-2000 | Ford | E-150 Econoline | XL |
| 1992-2002 | Ford | E-150 Econoline Club Wagon | Chateau |
| 1992-2000 | Ford | E-150 Econoline Club Wagon | Custom |
| 2001-2002 | Ford | E-150 Econoline Club Wagon | XL |
| 1992-2002 | Ford | E-150 Econoline Club Wagon | XLT |
| 2003-2014 | Ford | E-250 | Base |
| 1992-2002 | Ford | E-250 Econoline | Base |
| 1992-2000 | Ford | E-250 Econoline | XL |
| 2003-2005 | Ford | E-350 Club Wagon | Chateau |
| 2003-2005 | Ford | E-350 Club Wagon | XL |
| 2003-2005 | Ford | E-350 Club Wagon | XLT |
| 1992-1998 | Ford | E-350 Econoline | Base |
| 1992-1998 | Ford | E-350 Econoline | XL |
| 1992-2002 | Ford | E-350 Econoline Club Wagon | Chateau |
| 1992-1996 | Ford | E-350 Econoline Club Wagon | Chateau HD |
| 1992-2000 | Ford | E-350 Econoline Club Wagon | Custom |
| 1992-1993 | Ford | E-350 Econoline Club Wagon | Custom HD |
| 2001-2002 | Ford | E-350 Econoline Club Wagon | XL |
| 1994-1998 | Ford | E-350 Econoline Club Wagon | XL HD |
| 1992-2002 | Ford | E-350 Econoline Club Wagon | XLT |
| 1992-1998 | Ford | E-350 Econoline Club Wagon | XLT HD |
| 2001-2014 | Ford | E-350 Super Duty | Base |
| 2006 | Ford | E-350 Super Duty | Chateau |
| 2006-2014 | Ford | E-350 Super Duty | XL |
| 2006-2014 | Ford | E-350 Super Duty | XLT |
| 2003-2005 | Ford | Excursion | Eddie Bauer |
| 2000-2005 | Ford | Excursion | Limited |
| 2004-2005 | Ford | Excursion | XLS |
| 2000-2005 | Ford | Excursion | XLT |
| 1991-1994 | Ford | Explorer | Eddie Bauer |
| 1993-1994 | Ford | Explorer | Limited |
| 1991-1994 | Ford | Explorer | Sport |
| 1991-1994 | Ford | Explorer | XL |
| 1991-1994 | Ford | Explorer | XLT |
| 1987-1992 | Ford | F-150 | Custom |
| 1995-1996 | Ford | F-150 | Eddie Bauer |
| 1993-1995 | Ford | F-150 | Lightning |
| 1995-1996 | Ford | F-150 | Special |
| 1987-1996 | Ford | F-150 | XL |
| 1993-1996 | Ford | F-150 | XLT |
| 1987-1992 | Ford | F-150 | XLT Lariat |
| 1997-1999 | Ford | F-250 | Base |
| 1987-1992 | Ford | F-250 | Custom |
| 1995-1996 | Ford | F-250 | Eddie Bauer |
| 1997-1999 | Ford | F-250 | Lariat |
| 1995-1996 | Ford | F-250 | Special |
| 1987-1999 | Ford | F-250 | XL |
| 1993-1999 | Ford | F-250 | XLT |
| 1987-1992 | Ford | F-250 | XLT Lariat |
| 2004-2015 | Ford | F-250 Super Duty | King Ranch |
| 1999-2015 | Ford | F-250 Super Duty | Lariat |
| 1999-2015 | Ford | F-250 Super Duty | XL |
| 1999-2015 | Ford | F-250 Super Duty | XLT |
| 1997 | Ford | F-350 | Base |
| 1987-1992 | Ford | F-350 | Custom |
| 1995 | Ford | F-350 | Eddie Bauer |
| 1995-1996 | Ford | F-350 | Special |
| 1987-1997 | Ford | F-350 | XL |
| 1993-1997 | Ford | F-350 | XLT |
| 1987-1992 | Ford | F-350 | XLT Lariat |
| 2009-2010 | Ford | F-350 Super Duty | Cabela's |
| 2008-2009 | Ford | F-350 Super Duty | FX4 |
| 2004-2010 | Ford | F-350 Super Duty | Harley-Davidson Edition |
| 2003-2015 | Ford | F-350 Super Duty | King Ranch |
| 1999-2015 | Ford | F-350 Super Duty | Lariat |
| 2013-2015 | Ford | F-350 Super Duty | Platinum |
| 1999-2015 | Ford | F-350 Super Duty | XL |
| 1999-2015 | Ford | F-350 Super Duty | XLT |
| 1990-1992 | Ford | Ranger | Custom |
| 1990-1992 | Ford | Ranger | S |
| 1990 | Ford | Ranger | S Plus |
| 1993-1997 | Ford | Ranger | Splash |
| 1991-1993,1997 | Ford | Ranger | Sport |
| 1990-1997 | Ford | Ranger | STX |
| 1993-1997 | Ford | Ranger | XL |
| 1995 | Ford | Ranger | XL Sport |
| 1990-1997 | Ford | Ranger | XLT |
| 1994-1997 | Mazda | B2300 | Base |
| 1994-1997 | Mazda | B2300 | SE |
| 1994-1996 | Mazda | B3000 | Base |
| 1994-1996 | Mazda | B3000 | SE |
| 1997 | Mazda | B4000 | Base |
| 1994-1996 | Mazda | B4000 | LE |
| 1994-1997 | Mazda | B4000 | SE |
| 1992-1994 | Mazda | Navajo | DX |
| 1991-1994 | Mazda | Navajo | LX |
