Full-Race - Bolt On Twin Turbo Upgrade Kit - 2013-16 Ford F-150 EcoBoost 3.5L
Full-Race - Bolt On Twin Turbo Upgrade Kit - 2013-16 Ford F-150 EcoBoost 3.5L
SKU:FR-T0114023082_T0114023083
Fitments
Fitments
Couldn't load pickup availability
Product Information

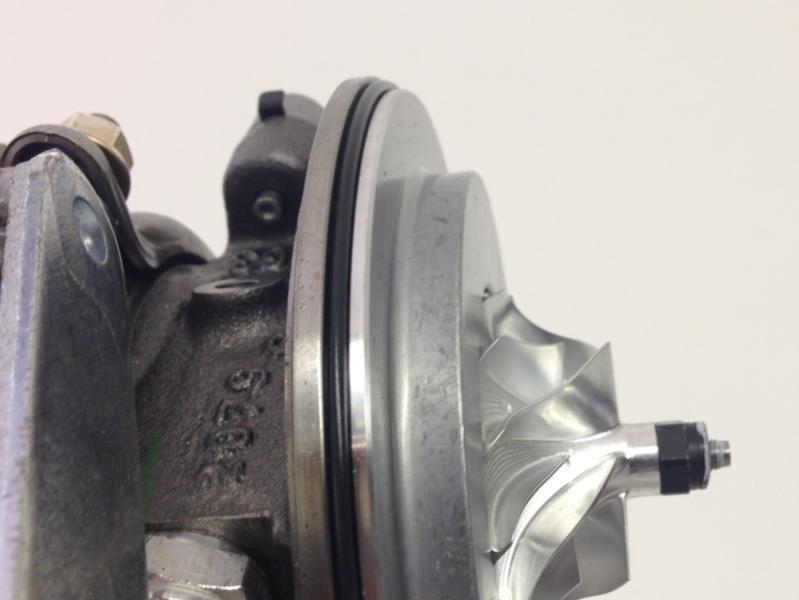

Full-Race’s EcoBoost F-150 Bolt-on turbos flow an additional +15 lb/min airflow to support up to 150 flywheel HP. These are purpose built, stock-appearing and stock-location upgrade turbos. Each turbo is hand built and high speed balanced by BorgWarner – the OE supplier to Ford. This is truly a bolt-on upgrade designed with long term OE-reliability in mind. Stock tunes can be utilized with all stock components. Wastegate actuators are pre-calibrated for easy installation. For maximum results a custom tune is recommended. Nobody can visually tell these are not OEM without completely disassembling the turbo. For maximum gains, a custom calibration from an experienced tuner is recommended.
2011-2012 turbos have an integrated BOV on the compressor housing. 2013-2015+ turbos require an external BOV (we recommend using a mechanical BOV). you can swap turbos between the years if you understand how to properly configure your BOV setup.
These turbos are compatible with stock and aftermarket tunes. We recommend custom tuning – details HERE. The dynochart shown below shows a tuned 2014 F150 on 93 octane – comparing the stock turbos tuned vs these turbos tuned.
Features:
- Performance-optimized Billet compressor wheel with latest generation EFR blade aero
- A direct bolt-on replacement; all connections to the vehicle utilize OE inlet and outlet to retain factory intake plumbing and exhaust routing.
- Manufactured with 100% brand-new OEM components – Not remanufactured and no core charge
- Ready to install out of the box, with pre-set wastegate
- Step-Gap oil seal on Turbine side
- Multipad Thrust Bearing Assembly
- Watercooled Center Section
Installation Notes:
LH F150 turbo removal and installation
RH F150 turbo removal and installation
-For easier removal of old turbos, spray PB blaster to the turbo hardware a few times, and let it soak overnight before you pull the turbos.
-The special spring clip tool is not mandatory. you can use a small “pick” tool and pop the spring clips off easily enough. try not to lose them!
-Full-Race recommends applying high-temp antiseize to all threaded surfaces upon install.
-After installation, crank the engine with throttle held down 100%. This will build oil pressure in the turbos, without starting your engine
Here is a Ford parts list if you want to change every gasket, nut, and bolt when swapping turbos. You can reuse everything off the stock turbos, but it is more work than just buying these pieces and not having to extract rusty overheated studs/nuts.
(2) BL3Z-9450-A. Downpipe flange to turbo gasket
(2) BL3Z-9N496-A. Downpipe flange
(4) W716667-S900. Downpipe studs
(4) W520514-S440. Downpipe to turbo nuts
(6) W715673-S900. Turbo to exhaust manifold bolt. (3) each turbo to ex mani.
(1) CL3Z-9450-A. Exhaust manifold gasket right side
(1) CL3Z-9450-B. Exhaust manifold gasket left side
(2) BL3Z-6N652-B. Oil flange gasket for each turbo
(4) W715539-S900. Oil flange bolts. 2 for each turbo
California Residents: This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a “Race Only” product to be used solely for competition. It’s use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer’s responsibility to verify legal use of this product for the intended application and use.
