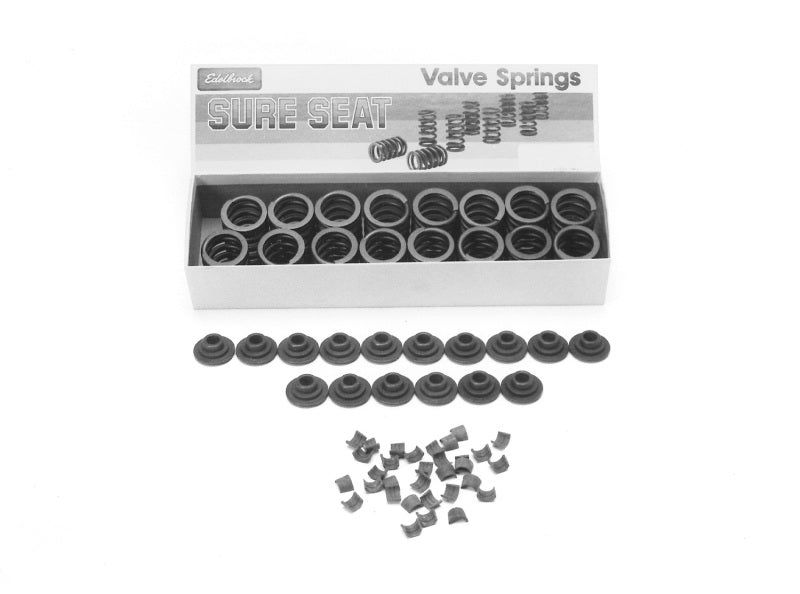

Edelbrock part #5894 Sure Seat Valve Spring Kit is designed for Small-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are supplied with retainers and lock kit. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16. Valve Spring Specifications: Type: Non-Rotator Seat Pressure: 80 lbs. Installed Height: 1.700" Open Pressure: 200 lbs. @ 0.475" Outside Diameter: 1.222" Inside Diameter: 0.875" Coil Bind: 1.150"
This Part Fits:
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1980 | Avanti | II | Base |
| 1980 | Buick | Century | Base |
| 1980 | Buick | Century | Estate |
| 1980 | Buick | Century | Limited |
| 1991-1993 | Buick | Commercial Chassis | Base |
| 1980 | Buick | Regal | Base |
| 1980 | Buick | Regal | Limited |
| 1992-1993 | Buick | Roadmaster | Base |
| 1991-1993 | Buick | Roadmaster | Estate Wagon |
| 1992-1993 | Buick | Roadmaster | Limited |
| 1990-1992 | Cadillac | Brougham | Base |
| 1990-1992 | Cadillac | Brougham | d'Elegance |
| 1994-1995 | Cadillac | Commercial Chassis | Base |
| 1992-1995 | Cadillac | Commercial Chassis | Brougham |
| 1993-1995 | Cadillac | Fleetwood | Base |
| 1993-1995 | Cadillac | Fleetwood | Brougham |
| 1980-1982 | Checker | Marathon | Base |
| 1980-1982 | Checker | Marathon | Deluxe |
| 1994 | Chevrolet | Blazer | Base |
| 1992-1993 | Chevrolet | Blazer | Cheyenne |
| 1987 | Chevrolet | Blazer | Custom Deluxe |
| 1988-1991 | Chevrolet | Blazer | Scottsdale |
| 1987-1994 | Chevrolet | Blazer | Silverado |
| 1994 | Chevrolet | Blazer | Silverado Sport |
| 1980 | Chevrolet | C10 | Big Ten |
| 1980-1981 | Chevrolet | C10 | Cheyenne |
| 1981-1986 | Chevrolet | C10 | Custom |
| 1980 | Chevrolet | C10 | Custom Deluxe |
| 1981 | Chevrolet | C10 | Deluxe |
| 1980-1986 | Chevrolet | C10 | Scottsdale |
| 1980-1986 | Chevrolet | C10 | Silverado |
| 1981-1986 | Chevrolet | C10 Suburban | Custom |
| 1980 | Chevrolet | C10 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C10 Suburban | Deluxe |
| 1980,1982,1984-1986 | Chevrolet | C10 Suburban | Scottsdale |
| 1980,1982-1986 | Chevrolet | C10 Suburban | Silverado |
| 1994-1995 | Chevrolet | C1500 | Base |
| 1988-1995 | Chevrolet | C1500 | Cheyenne |
| 1988-1992 | Chevrolet | C1500 | Scottsdale |
| 1988-1995 | Chevrolet | C1500 | Silverado |
| 1990-1995 | Chevrolet | C1500 | WT |
| 1992-1995 | Chevrolet | C1500 Suburban | Base |
| 1995 | Chevrolet | C1500 Suburban | LS |
| 1995 | Chevrolet | C1500 Suburban | LT |
| 1992-1994 | Chevrolet | C1500 Suburban | Silverado |
| 1980-1981 | Chevrolet | C20 | Cheyenne |
| 1981-1986 | Chevrolet | C20 | Custom |
| 1980 | Chevrolet | C20 | Custom Deluxe |
| 1981 | Chevrolet | C20 | Deluxe |
| 1980-1986 | Chevrolet | C20 | Scottsdale |
| 1980-1986 | Chevrolet | C20 | Silverado |
| 1981-1986 | Chevrolet | C20 Suburban | Custom |
| 1980 | Chevrolet | C20 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C20 Suburban | Deluxe |
| 1980,1982,1984-1986 | Chevrolet | C20 Suburban | Scottsdale |
| 1980,1982-1986 | Chevrolet | C20 Suburban | Silverado |
| 1994-1995 | Chevrolet | C2500 | Base |
| 1988-1995 | Chevrolet | C2500 | Cheyenne |
| 1988-1992 | Chevrolet | C2500 | Scottsdale |
| 1988-1995 | Chevrolet | C2500 | Silverado |
| 1994-1995 | Chevrolet | C2500 | WT |
| 1992-1995 | Chevrolet | C2500 Suburban | Base |
| 1995 | Chevrolet | C2500 Suburban | LS |
| 1995 | Chevrolet | C2500 Suburban | LT |
| 1992-1994 | Chevrolet | C2500 Suburban | Silverado |
| 1980-1981 | Chevrolet | C30 | Cheyenne |
| 1981-1986 | Chevrolet | C30 | Custom |
| 1980 | Chevrolet | C30 | Custom Deluxe |
| 1981 | Chevrolet | C30 | Deluxe |
| 1980-1986 | Chevrolet | C30 | Scottsdale |
| 1980-1986 | Chevrolet | C30 | Silverado |
| 1994-1995 | Chevrolet | C3500 | Base |
| 1988-1995 | Chevrolet | C3500 | Cheyenne |
| 1988-1992 | Chevrolet | C3500 | Scottsdale |
| 1988-1995 | Chevrolet | C3500 | Silverado |
| 1980,1988 | Chevrolet | Camaro | Base |
| 1980-1986 | Chevrolet | Camaro | Berlinetta |
| 1985-1990 | Chevrolet | Camaro | Iroc-Z |
| 1987 | Chevrolet | Camaro | LT |
| 1980 | Chevrolet | Camaro | Rally Sport |
| 1989-1992 | Chevrolet | Camaro | RS |
| 1992 | Chevrolet | Camaro | RS Heritage Edition |
| 1981-1987 | Chevrolet | Camaro | Sport |
| 1980-1987,1991-1992 | Chevrolet | Camaro | Z28 |
| 1992 | Chevrolet | Camaro | Z28 Heritage Edition |
| 1982 | Chevrolet | Camaro | Z28 Indianapolis 500 Pace Car |
| 1986-1992 | Chevrolet | Caprice | Base |
| 1980-1995 | Chevrolet | Caprice | Classic |
| 1986-1990 | Chevrolet | Caprice | Classic Brougham |
| 1981-1982 | Chevrolet | Caprice | Classic Estate |
| 1980-1981 | Chevrolet | Caprice | Classic Landau |
| 1993-1994 | Chevrolet | Caprice | Classic LS |
| 1987-1990 | Chevrolet | Caprice | Classic LS Brougham |
| 1991-1993 | Chevrolet | Caprice | Classic LTZ |
| 1980 | Chevrolet | Caprice | Classic Sport |
| 1991-1993 | Chevrolet | Commercial Chassis | Base |
| 1988 | Chevrolet | Corvette | 35th Anniversary Edition |
| 1980-1982,1984-1991 | Chevrolet | Corvette | Base |
| 1982 | Chevrolet | Corvette | Collector's Edition |
| 1986 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 1990-1995 | Chevrolet | Corvette | ZR-1 |
| 1980-1987 | Chevrolet | El Camino | Base |
| 1981-1986 | Chevrolet | El Camino | Conquista |
| 1980-1981 | Chevrolet | El Camino | Royal Knight |
| 1980-1987 | Chevrolet | El Camino | SS |
| 1983 | Chevrolet | G10 | Base |
| 1980-1995 | Chevrolet | G10 | Beauville |
| 1981-1984,1986-1987 | Chevrolet | G10 | Bonaventure |
| 1980-1995 | Chevrolet | G10 | Chevy Van |
| 1980-1995 | Chevrolet | G10 | Sportvan |
| 1980-1995 | Chevrolet | G20 | Beauville |
| 1983-1984 | Chevrolet | G20 | Bonaventure |
| 1980-1995 | Chevrolet | G20 | Chevy Van |
| 1980-1981 | Chevrolet | G20 | Nomad |
| 1980-1995 | Chevrolet | G20 | Sportvan |
| 1980-1995 | Chevrolet | G30 | Beauville |
| 1983-1984 | Chevrolet | G30 | Bonaventure |
| 1980-1995 | Chevrolet | G30 | Chevy Van |
| 1980-1995 | Chevrolet | G30 | Hi-Cube |
| 1980-1995 | Chevrolet | G30 | Sportvan |
| 1980-1985 | Chevrolet | Impala | Base |
| 1981-1982 | Chevrolet | Impala | Estate |
| 1980 | Chevrolet | Impala | Sport |
| 1980-1981 | Chevrolet | K10 | Cheyenne |
| 1981-1986 | Chevrolet | K10 | Custom |
| 1980 | Chevrolet | K10 | Custom Deluxe |
| 1981 | Chevrolet | K10 | Deluxe |
| 1980-1986 | Chevrolet | K10 | Scottsdale |
| 1980-1986 | Chevrolet | K10 | Silverado |
| 1981-1986 | Chevrolet | K10 Suburban | Custom |
| 1980 | Chevrolet | K10 Suburban | Custom Deluxe |
| 1981 | Chevrolet | K10 Suburban | Deluxe |
| 1980,1982,1984-1986 | Chevrolet | K10 Suburban | Scottsdale |
| 1980,1982-1983,1985-1986 | Chevrolet | K10 Suburban | Silverado |
| 1994-1995 | Chevrolet | K1500 | Base |
| 1988-1995 | Chevrolet | K1500 | Cheyenne |
| 1988-1992 | Chevrolet | K1500 | Scottsdale |
| 1988-1995 | Chevrolet | K1500 | Silverado |
| 1991 | Chevrolet | K1500 | Sport |
| 1990-1995 | Chevrolet | K1500 | WT |
| 1992-1995 | Chevrolet | K1500 Suburban | Base |
| 1995 | Chevrolet | K1500 Suburban | LS |
| 1995 | Chevrolet | K1500 Suburban | LT |
| 1992-1994 | Chevrolet | K1500 Suburban | Silverado |
| 1980-1981 | Chevrolet | K20 | Cheyenne |
| 1981-1986 | Chevrolet | K20 | Custom |
| 1980 | Chevrolet | K20 | Custom Deluxe |
| 1981 | Chevrolet | K20 | Deluxe |
| 1980-1986 | Chevrolet | K20 | Scottsdale |
| 1980-1983,1985-1986 | Chevrolet | K20 | Silverado |
| 1981-1986 | Chevrolet | K20 Suburban | Custom |
| 1980 | Chevrolet | K20 Suburban | Custom Deluxe |
| 1981 | Chevrolet | K20 Suburban | Deluxe |
| 1980,1982,1984-1986 | Chevrolet | K20 Suburban | Scottsdale |
| 1980,1982-1983,1985-1986 | Chevrolet | K20 Suburban | Silverado |
| 1994-1995 | Chevrolet | K2500 | Base |
| 1988-1995 | Chevrolet | K2500 | Cheyenne |
| 1988-1992 | Chevrolet | K2500 | Scottsdale |
| 1988-1995 | Chevrolet | K2500 | Silverado |
| 1994-1995 | Chevrolet | K2500 | WT |
| 1992-1995 | Chevrolet | K2500 Suburban | Base |
| 1995 | Chevrolet | K2500 Suburban | LS |
| 1995 | Chevrolet | K2500 Suburban | LT |
| 1992-1994 | Chevrolet | K2500 Suburban | Silverado |
| 1980-1981 | Chevrolet | K30 | Cheyenne |
| 1981-1986 | Chevrolet | K30 | Custom |
| 1980 | Chevrolet | K30 | Custom Deluxe |
| 1981 | Chevrolet | K30 | Deluxe |
| 1980-1986 | Chevrolet | K30 | Scottsdale |
| 1980-1986 | Chevrolet | K30 | Silverado |
| 1994-1995 | Chevrolet | K3500 | Base |
| 1988-1995 | Chevrolet | K3500 | Cheyenne |
| 1988-1992 | Chevrolet | K3500 | Scottsdale |
| 1988-1995 | Chevrolet | K3500 | Silverado |
| 1980 | Chevrolet | K5 Blazer | Cheyenne |
| 1981-1986 | Chevrolet | K5 Blazer | Custom |
| 1980 | Chevrolet | K5 Blazer | Custom Deluxe |
| 1981 | Chevrolet | K5 Blazer | Deluxe |
| 1984 | Chevrolet | K5 Blazer | Scottsdale |
| 1980-1986 | Chevrolet | K5 Blazer | Silverado |
| 1980-1981 | Chevrolet | Malibu | Base |
| 1980-1983 | Chevrolet | Malibu | Classic |
| 1980 | Chevrolet | Malibu | Classic Estate |
| 1980-1981 | Chevrolet | Malibu | Classic Landau |
| 1980 | Chevrolet | Malibu | Classic Sport |
| 1980 | Chevrolet | Malibu | Estate |
| 1980 | Chevrolet | Malibu | Sport |
| 1981-1988 | Chevrolet | Monte Carlo | Base |
| 1983 | Chevrolet | Monte Carlo | CL |
| 1980-1981 | Chevrolet | Monte Carlo | Landau |
| 1986-1988 | Chevrolet | Monte Carlo | LS |
| 1980 | Chevrolet | Monte Carlo | Sport |
| 1983-1988 | Chevrolet | Monte Carlo | SS |
| 1987 | Chevrolet | R10 | Custom Deluxe |
| 1987 | Chevrolet | R10 | Scottsdale |
| 1987 | Chevrolet | R10 | Silverado |
| 1987 | Chevrolet | R10 Suburban | Custom Deluxe |
| 1987-1988 | Chevrolet | R10 Suburban | Scottsdale |
| 1987-1988 | Chevrolet | R10 Suburban | Silverado |
| 1989-1991 | Chevrolet | R1500 Suburban | Scottsdale |
